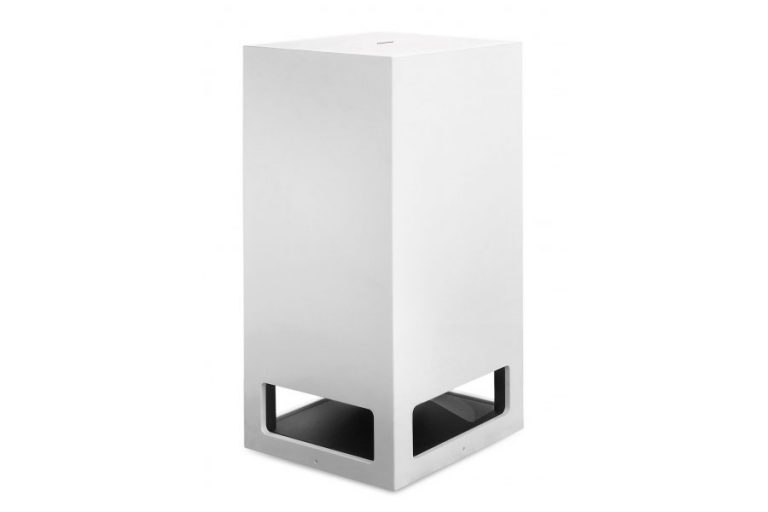

WA125 360° Outdoor Subwoofer

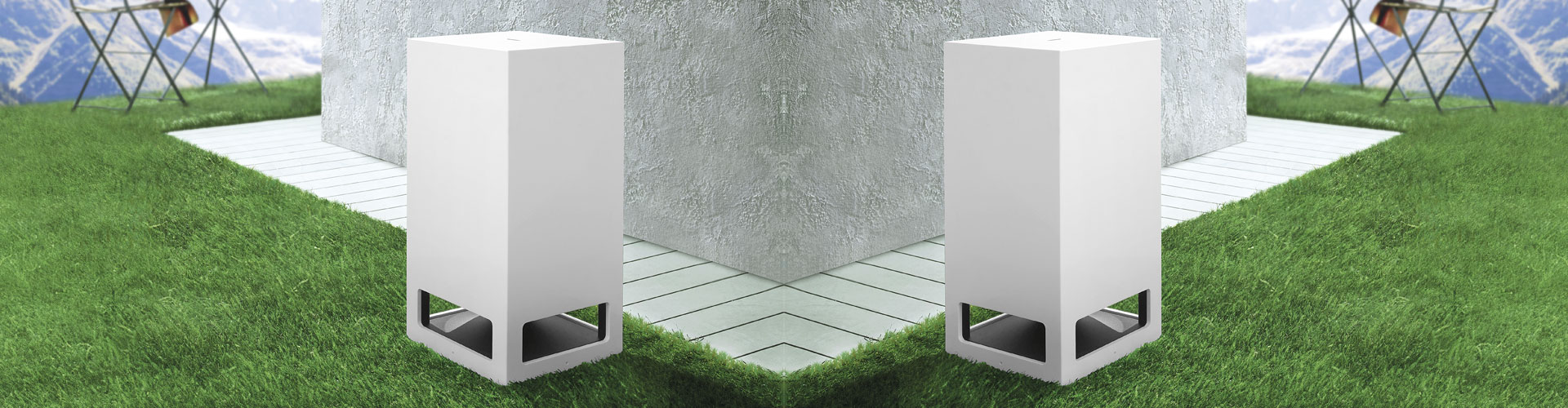

WA125 is the outdoor subwoofer from the Loto™ Collection, designed to extend low-frequency reproduction in gardens, terraces, poolside areas, hospitality venues and other outdoor spaces.
The 250 mm woofer, with 300 W AES and 600 W continuous power, delivers deep bass with 360° omnidirectional dispersion, adding even, engaging low-frequency reinforcement to outdoor audio systems.
The Corian® or porcelain stoneware cabinet, together with the stainless-steel structure and grille, combines acoustic performance, outdoor durability and architectural integration.
Essential technical specifications
Do you have a project in mind?
We can help you understand whether this product is suitable for your space and how to integrate it effectively, both acoustically and aesthetically.
Deep 360° bass even low-frequency reinforcement in open spaces
Low frequencies disperse more easily outdoors. WA125 extends the audio system’s response, adding greater depth and impact while keeping bass reinforcement even throughout the listening area.
The 250 mm woofer and 300 W AES power complement outdoor speakers used for background music as well as more powerful systems for homes, hospitality venues and professional outdoor spaces.
- Frequency response: 50 Hz – 150 Hz (-3 dB)
- Extended range: 40 Hz – 150 Hz (-10 dB)
- Sensitivity: 91 dB (2,83 V / 1 m)
- Calculated maximum SPL: 125 dB @ 1 m
Materials for outdoor use Corian® or porcelain stoneware, stainless steel and project-coordinated finishes
WA125 is available with a Corian® or porcelain stoneware cabinet, materials suited to integration into outdoor projects and offered in a range of finishes. The supporting structure is made of AISI 316L stainless steel, while the protective grille is made of black-painted AISI 316 stainless steel.
The construction is designed for continuous outdoor use, with an IP35 protection rating and an operating temperature range from -25 °C to +70 °C.
- Cabinet in Corian® or porcelain stoneware
- Supporting structure in AISI 316L stainless steel
- Net weight: 16,4 kg in Corian® / 27,4 kg in porcelain stoneware
- Garvan Acoustic Wellness warranty: 3+1+1 years
Installation and amplification dedicated accessories, presets and protection for the outdoor system
The ground-mounting base is included. Dedicated accessories for fixing, protection and safety are available for installations on lawns, outdoor surfaces or areas accessible to the public.
WA125 has a nominal impedance of 4 Ω and requires equalisation. Garvan presets, filters and dedicated protection are available; the recommended high-pass filter is set to 40 Hz with a slope of 48 dB/octave.
- Ground-fixing base included
- Lawn-protection plate, cover and anti-theft kit optional
- 2-pole waterproof connector optional
- Trasformatori optional per linee 70/100 V
Available accessories
The ground-mount base is included with WA125. The subwoofer can also be completed with optional accessories designed for installation, protection and connection in outdoor audio systems.
- Turf protection plate HA046H / HA046X: protects and finishes the area around the subwoofer in lawn installations. It has a diameter of 460 mm and is available in matte black or brushed stainless steel.
- Ground anti-theft kit HRX031: securely anchors the subwoofer to the ground, providing additional protection against removal.
- Protective cover RT005A: protects the product during periods of non-use.
- Waterproof 2-pin connector RP0001: provides a protected connection for outdoor installations.
- Transformer TRT055: allows connection to 70/100 V distributed audio systems, with selectable power ratings of 25, 37.5 or 50 W.
- Transformer TRT101: allows connection to 100 V systems with a power rating of 100 W and an impedance of 4/8 Ω.
Accessory codes, specifications and installation instructions are available in the product Datasheet.
